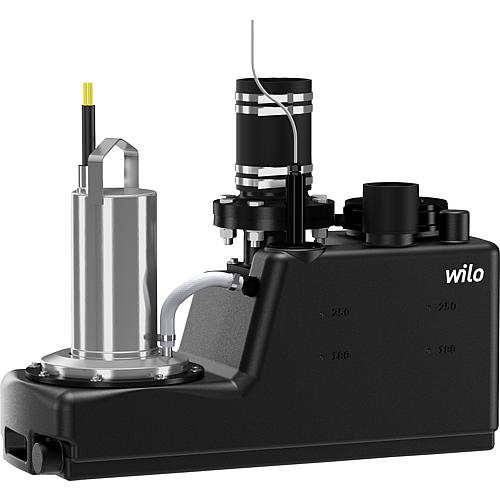

Draining system Wilo-DrainLift S, for domestic waste water containing faecal matter

• For drainage of homes and commercial buildings
• Single system
• Nominal power: 1500 W
• Voltage: 230 V/50 Hz
• Max. flow rate: 35000 l/h
• Max. discharge head: 6.0 m
• Perm. wastewater temperature: max. 40°C (KZB 60°C)
• Tank volume: 45 l
• Switching volume: 21 l
• Injection vents: DN 100 / 2xDN40
• Pressure nozzles: DN 80
• Ventilation nozzles: DN 70
• Dimensions (L x D x H): 799 x 500 x 300 mm
Delivery contents:
• Ready-to-connect wastewater pump station
• Switching device
• Backflow preventer
• Inlet seal DN 100
• Hole saw
• Fittings

• Flange piece not included!
