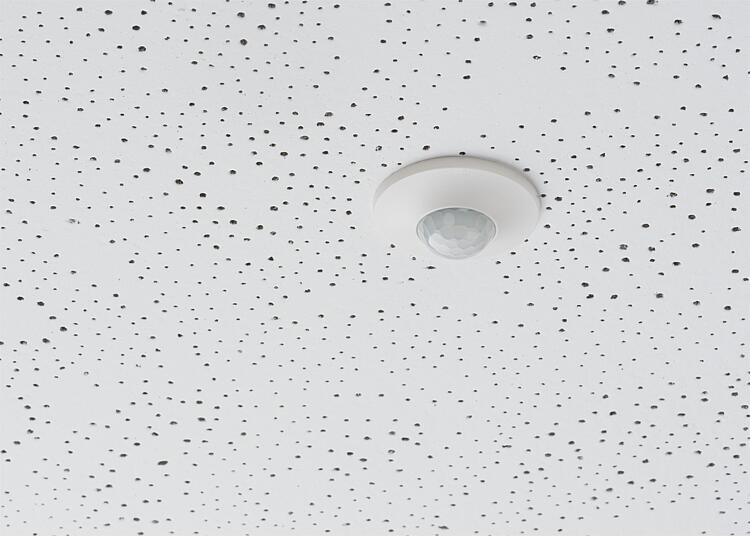

thePiccola P360-100 DE WH presence detector

• Passive infrared presence detector for ceiling fitting
• Automatic lighting control depending on presence and brightness
• Mixed light measurement suitable for fluorescent lights (FL/PL/ESL), halogen lights/bulbs and LEDs
• Operation can be switched between fully and semi-automatic
• Adjustable brightness switching, teach-in function
• Pulse function for stair light time switch
• Adjustable overrun
• Test mode for checking function and detection range
• Connection option for manual switch
• Factory pre-sets make it ready to use immediately
• An optional remote control is required to change the values and settings
Technical data:
• Protection type: IP 44 (sensor), IP 20 (power unit)
• Ceiling cut-out ø 34 - 36 mm
• Fitting height: 2 - 4 m
• Detection range: up to 50 m² (ø 8 m | 360 °)
• Operating voltage: 230 V/AC
• Sensitivity range: 5 - 1000 lux
• Switch-on delay: -
• Switch-off delay: 30 sec. - 30 min.
• Switching capacities:
- Bulb: 2000 W
- Fluorescent lamp: 2000 W
- LED lamp: 200 W
