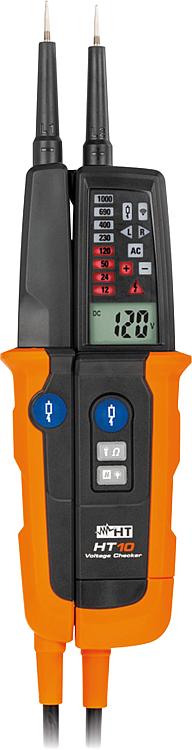

Voltage testers HT HT10 CAT IV, 1000V DigitalOrder no.: 70 004 99
XXX.XX
€/unit
immediately available Description • Protection class: IP64 • Display: optical, LED/LCD • Voltage range AC: 12 V - 1000 V • Voltage range DC: 12 V - 1000 V • Frequency measuring range: No • Acoustic and optical continuity test: Buzzer + display • Resistance measuring range: 1 Ω - 1999 Ω • Rotary field test: LCD symbol "R"/"L" • FI/RCD test: Yes • Vibration alarm: No • Measuring point illumination: Yes • Test probe adapter: Unscrewable 4 mm • Overvoltage category: CAT III 1000 V / CAT IV 600 V • Dimensions (L x W x D): 240 x 55 x 40 mm • Weight: 300 g • Scope of delivery: - Batteries: 2 x AAA (order no.: 62 079 46) - 1 x measuring tip attachments - 1 x protective bag To product family Questions regarding itemPlease login beforehand Add to a listPlease login beforehand |
| Manufacturer item no.: | 1010850 |
| Brand: | HT Instruments |
| EAN: | 8033100185430 |
| Testing type: | 2-pole |
| Voltage display: | LCD |
| Voltage measuring range [V]: | 3 - 1,000 |
| Blade length [mm]: | 20 |
| Blade width [mm]: | 4 |
| Internal base load: | ✓ |
| Battery: | AAA |
| Number of batteries required: | 2 |
| Connectable load: | ✓ |
| Rotary field direction display: | ✓ |
| Continuity test: | ✓ |
| Throughput display: | Optic/acoustic |
| Resistance measurement range [kOhm]: | 0 - 2 |
| Length [mm]: | 240 |
| Single-pin phase display: | ✓ |
| Contactless voltage detection: | - |
| Background lighting of LC display: | ✓ |
| Measurement probe protection: | ✓ |
| Measurement point lighting: | ✓ |
| Usable in precipitation: | - |
| Power supply: | Battery |
| Measurement circuit category: | CAT IV |
