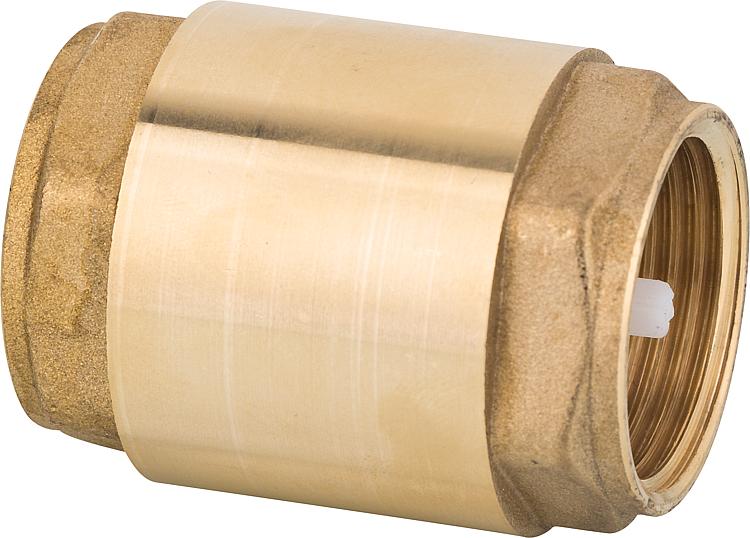

Check valve, brass 1 1/4" x 1 1/4"

Order no.: 90 031 05

XXX.XX €/unit

immediately available

• Application: Heating and plumbing
• Max. operating temperature: 110 °C
• Max. operating pressure: DN 25 / DN 32: 16 / 10 bar
• Opening pressure: approx. 20 mbar
• Valve housing: brass
• Valve plate: Plastic

To product family

Questions regarding itemPlease login beforehand

Add to a listPlease login beforehand

Technical data
Documents

Length [mm]:	66
Size:	DN 32 (1 1/4")
• Max. operating pressure [bar]:	10
Housing material:	Brass
Length [mm]:	66
Connection size:	1 1/4 inch (32)
Connections:	Internal thread
Design:	Straight
Gasket:	NBR (nitrile rubber)
Max. medium temperature (continuous operation) [°C]:	110
Max. Working pressure at 20 °C [bar]:	16

Data sheets

90_031_05--DBL-01-de 1,2 MB
