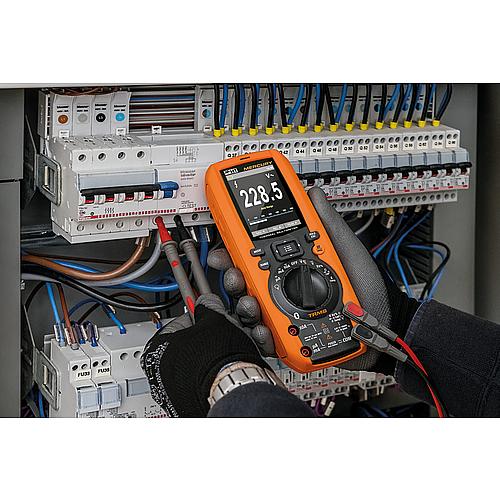

Multimeter and thermal imaging camera Mercury

• Protection type: IP65
• Display: TFT illuminated
• Display size: 6000 px
• Voltage range AC: 1 mV - 1000 V
• Voltage range DC: 0.1 mV - 1000 V
• Current measurement range AC: 0.1 µA - 10 A
• Current measurement range DC: 0.1 µA - 10 A
• Resistance measurement range: 0.1 Ω - 60 MΩ
• Continuity/diode: no
• Frequency measurement range: 0.01 Hz - 10 MHz
• Capacity: 0.01 nF to 6 mF
• Temperature: -40°C to +1000°C
• Memory function: yes
• Measuring point illumination: yes
• Overvoltage category: CAT III 1000 V / CAT IV 600 V
• Dimensions (L x W x D): 185 x 85 x 55 mm
• Weight: 555 g
Technical data for thermal imaging camera:
• Resolution (pxl): 80 x 80, 34 µm
• Temperature resolution: < 0.1°C / 30°C
• Temperature measurement range: -20°C - + 260°C
• Field of view (FOV) / lens: 21° x 21° / 7.5 mm
• Focus: automatic
• Colour pallets: 4
• Delivery contents:
- 1 x rechargeable battery and charging adapter
- 2 x measuring cable with probe 4 mm
- 1 x Micro SD card 4 GB
- 1 x protective case

• With thermal imaging camera

TRUE RMS effective measurement process for precise measurement results
