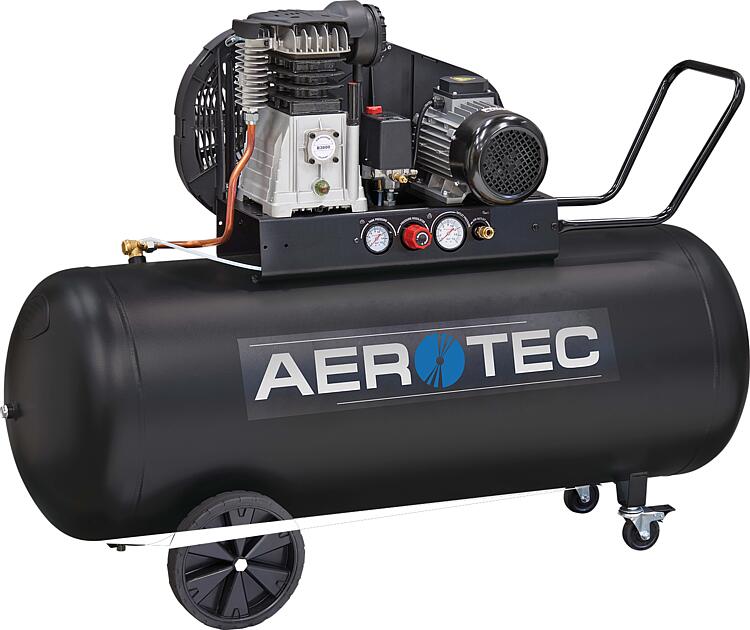

Piston compressor 590-200 S-TECH CM3

• Oil-free: No
• Boiler size (l): 200
• Pressure (bar): 10
• Suction capacity (l/min.): 405
• Delivery volume (l/min.): 260
• Acoustic pressure dB (A): 73
• Motor (kW/HP): 2.2/3
• Voltage (V/Hz): 230/50
• Dimensions (L x W x H mm): 1440 x 480 x 1130
• Weight (kg): 110

• Mobile piston compressor in an oil-lubricated design
• Slow-running, V-belt driven 2-cylinder 1-stage in-line unit
• Nee suction filter system for minimal suction noise
• Unloaded start via pressure switch control
• With large profiled, ball-bearing hard rubber wheels
• Swivel castors for easy handling
• Condensate drainage takes place via a ball valve
• Delivery includes phase inverter plug
