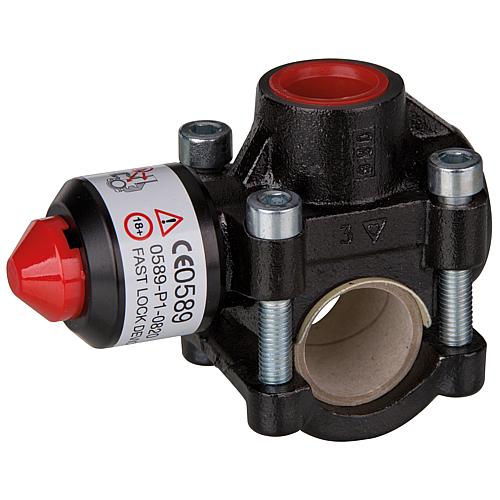

Pipe connection Flamco T-Plus for steel threaded pipe 3/4"x1/2"x3/4""Order no.: 93 016 02
XXX.XX
€/unit

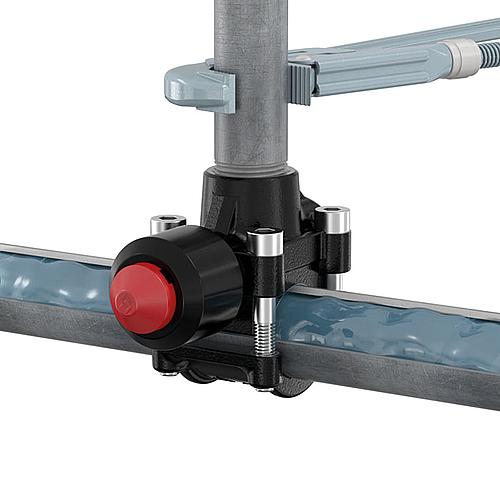

immediately available Description • A system for threaded pipes according to DIN EN PrEN 10255 series M and series H, seamless steel pipes according to DIN EN 10216 (normal wall) and welded steel pipes according to DIN EN 10217 (normal wall) • Casing made of malleable cast iron • Max. temperature: +120°C • Max. pressure: 25 bar • For system expansion or modification without operation interruption and without emptying the system, including trigger mechanism To product family Questions regarding itemPlease login beforehand Add to a listPlease login beforehand |
| Manufacturer item no.: | 90620 |
| Size: | 20 |
| Size: | DN 20 (3/4") x DN 15 (1/2") x DN 20 (3/4") |
| Pipe outer ø [mm]: | 26.9 |
| Brand: | Flamco |
| EAN: | 8712874906204 |
| Number of connections: | 3 |
| Unpressed leaking: | - |
| System-bound: | - |
| Transitional: | - |
| Multi-part: | ✓ |
| Material connection 1: | Steel |
| Material connection 2: | Steel |
| Material connection 3: | Steel |
| Material grade Connection 1: | Malleable cast iron |
| Material grade connection 2: | Malleable cast iron |
| Material quality connection 3: | Malleable cast iron |
| Nominal inside diameter connection 1: | 3/4 inch (20) |
| Nominal inside diameter connection 2: | 1/2 inch (15) |
| Nominal inside diameter connection 3: | 3/4 inch (20) |
| Connection 1: | Insert |
| Connection 2: | Internal thread |
| Connection 3: | Insert |
| Max. working pressure [bar]: | 25 |
| Conical: | - |
| Flat sealing: | - |
| Suitable for drinking water according to UBA positive list: | - |
| DVGW seal: | - |
| Max. medium temperature (continuous operation) [°C]: | 120 |
