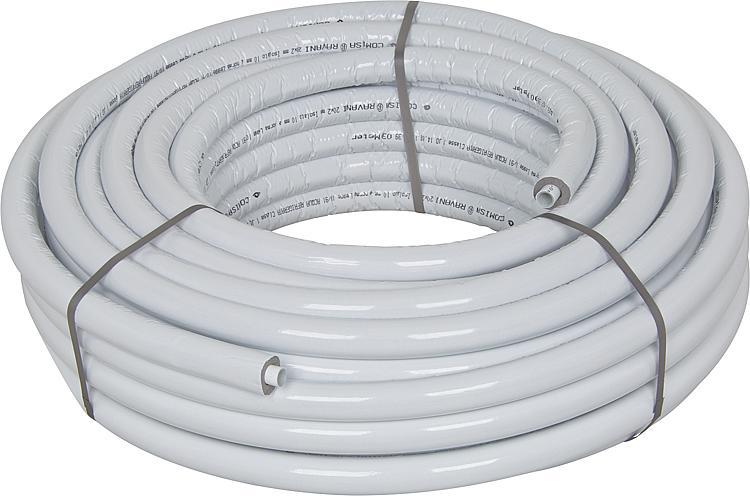

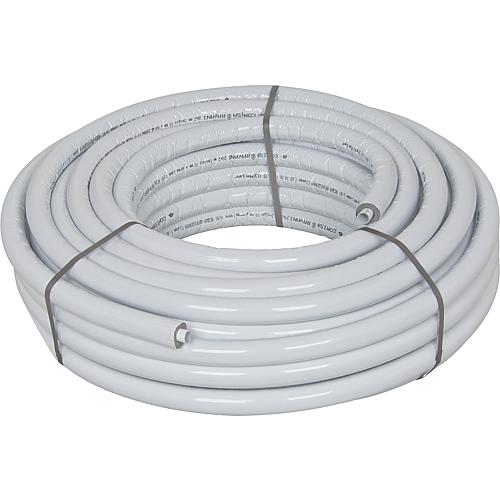

Metal composite pipe in rings 20x2 mm with insulation 9 mm PU 50 mOrder no.: 90 822 04
XXX.XX
€/unit
|
XXX.XX
€/unit
immediately available Description • Can be used in the areas of plumbing and heating • PE-RT composite pipes consisting of temperature-resistant polyethylene with an aluminium layer • Suitable for drinking water in accordance with UBA whitelist • Max. operating temperature: 95°C / pressure max.: 10 bar • System approval for WS press and plug connector system for multi-layer composite piping - With white insulation (9 mm) - Supplied as a complete roll To product family Questions regarding itemPlease login beforehand Add to a listPlease login beforehand |
| Size: | 20 x 2 mm |
| Roll: | 1 x 50 m |
| Material inner layer: | Plastic |
| Quality class inner layer: | PE-RT II |
| Intermediate layer material: | Aluminium |
| Length [m]: | 50 |
| Material outer layer: | Plastic |
| Quality class outer layer: | PE-RT II |
| Number of layers: | 5 |
| Glass-fibre reinforced: | - |
| Diffusion-tight: | ✓ |
| DVGW seal: | ✓ |
| Pipe outside diameter [mm]: | 20 |
| Wall thickness [mm]: | 2 |
| System-bound: | ✓ |
| Max. Working pressure at 20 °C [bar]: | 10 |
| Max. medium temperature (continuous operation) [°C]: | 95 |
| flexible: | ✓ |
| Pipe colour: | White |
| With casing pipe: | - |
| With thermal insulation: | ✓ |
| Thermal insulation thickness [mm]: | 9 |
| Colour thermal insulation: | Grey |
Data sheetsCertificates
